FORMAX Atlas C102 Auto-Feeding Creaser/Perforator


Price: Call Toll-Free (800) 203-0233 for Pricing

Availability: In Stock - Call for Price

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: Atlas C102   Brand Name:Formax   Manufacturer Part Number: Atlas C102

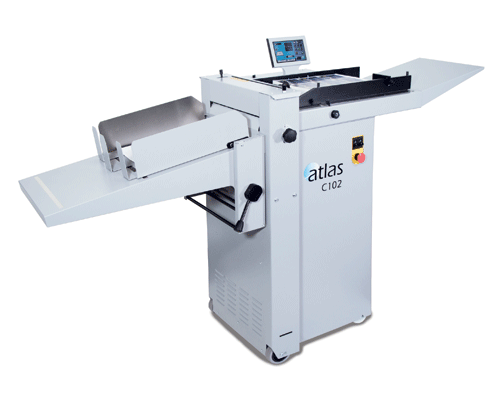

In today’s digital print environment, it’s not enough to simply print a piece; it must be finished properly for a clean, professional look. The Atlas C102 Auto-Feeding Creaser/Perforator is a fully-automatic, user-friendly solution to solve the problem of cracking in toner-based digital prints. Utilizing a unique creasing matrix, it compresses paper fibers instead of cutting them, virtually eliminating cracks on a creased or folded edge.

The quick-release blade system makes it easy to swap between creasing and perforating blades and requires no tools. It features variable creasing depth, which can be adjusted using a simple sliding lever, to accommodate different paper weights.

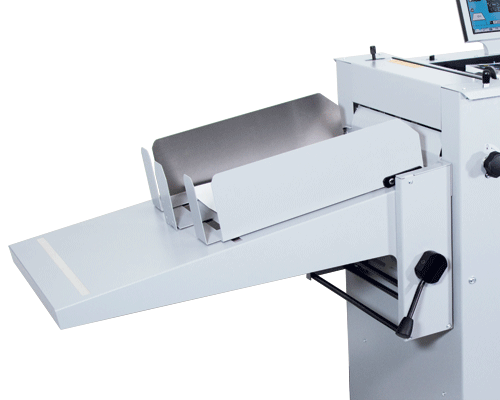

An extended infeed deck now accommodates sheets up to 35” L x 13” W. The height-adjustable outfeed stacker can be moved to match the paper stack height and keeps processed sheets neatly organized for quick and easy removal.

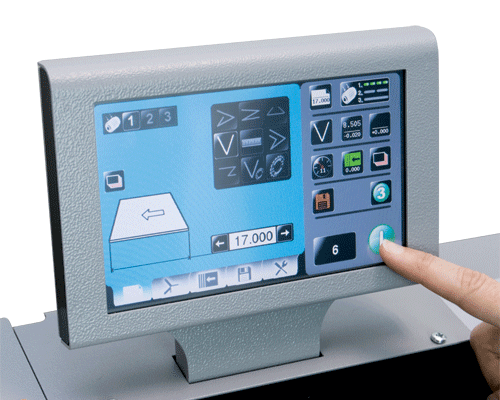

Using the graphics-based 7” touchscreen control panel, operators can easily set-up and save jobs in just minutes or use one of the six pre-programmed settings. The C102 automatically calculates the crease positions based on paper size and sets them accordingly. The powerful bottom-suction air-feed system allows for continuous loading of sheets, which increases productivity while maintaining accuracy, even with heavier stocks.

This fully-automatic air-feed creaser offers variable speed control to accommodate a wide variety of sheet sizes and thicknesses. With the ability to produce up to 16 creases per sheet, it can process up to 8,500 sheets (8.5” x 11”) or up to 11,000 sheets (6.5” x 8.5”) per hour. Perforating capabilities are also standard, with a wide range of perf wheels to suit many different applications.

Options include a cross and part perforation kit, narrow sheet guide, narrow creasing matrix, and a variety of perforating wheels in fine and coarse teeth configurations.

With rugged metal construction and a compact footprint, the Atlas C102 is an ideal addition to small print shops and production facilities with limited space that want to expand their digital print finishing capabilities.

KEY FEATURES
  • Fully automatic
  • Quick-release blade system
  • Height-adjustable outfeed stacker
  • 7" color touchscreen
  • Up to 8,500 sheets per hour
  • Up to 16 creases per sheet
  • Bottom-suction air feed table
  • Sheets up to 35" x 13"
  • Cross/part perforation kit (optional)
