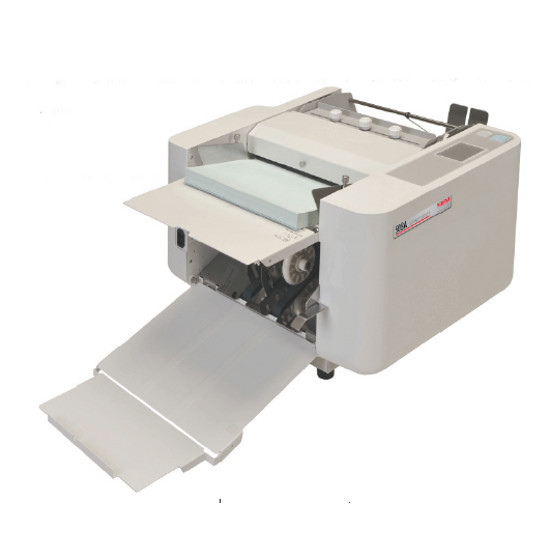

MBM 508A Automatic Programmable Tabletop Folder
MBM 508A Automatic Programmable Tabletop Folder
MBM 508A Automatic Programmable Tabletop Folder
SIDE VIEW - Reliable automatic folder that comes pre-programmed with 36 standard folds. Up to 24 custom jobs can be stored in memory

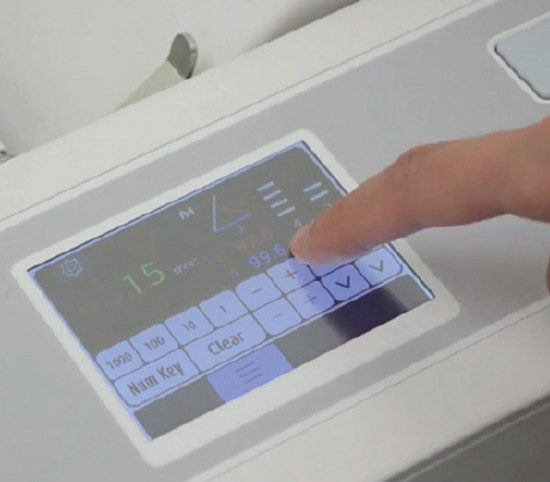

TOUCH SCREEN - The LED touch screen sets up 36 standard folds automatically at the touch of a button. Up to 24 custom folds can be stored in memory

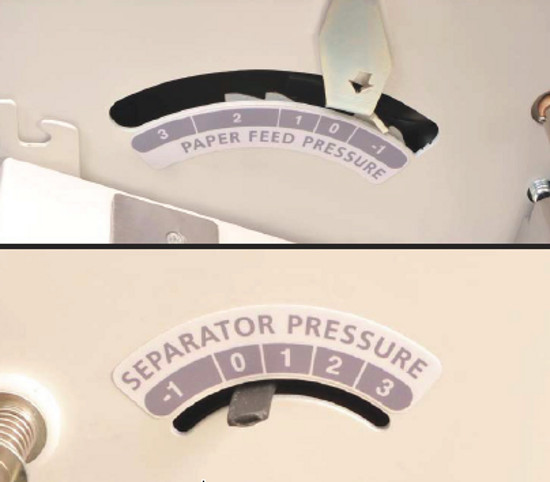

SEPARATOR PRESSURE ADJUSTMENT - Paper feed pressure adjustment helps the machine to feed wider range of stocks, and the separator pressure adjustment prevents double feeds

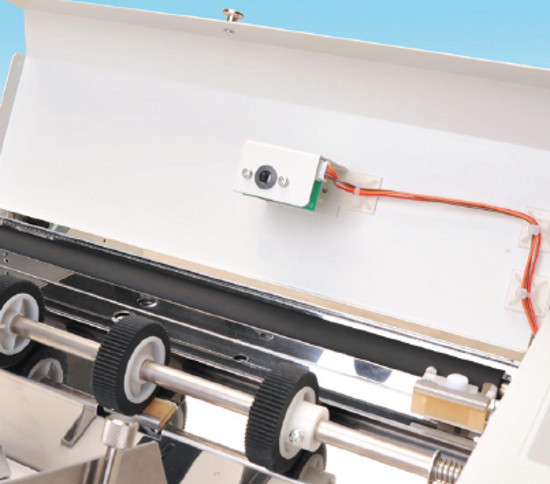

DOUBLE FEED DETECTION - The double feed detection sensor prevents mis-folded papers being contaminated to outputs
SCORING UNIT - The 508A can be used as a perforator by replacing a perf unit to the folding table. It is also possible to add or replace perf / score / kiss cut heads on a unit to give multiple finishing styles in one pass

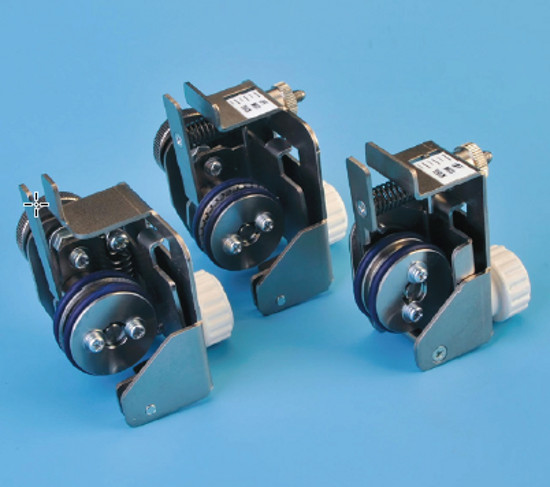

PERF / SCORING / KISS CUT HEADS - These heads hold rotary tools and can be mounted on a perforation/scoring unit: - Perf head with position adjustment - Perf head with pressure adjustment - Thin perf unit

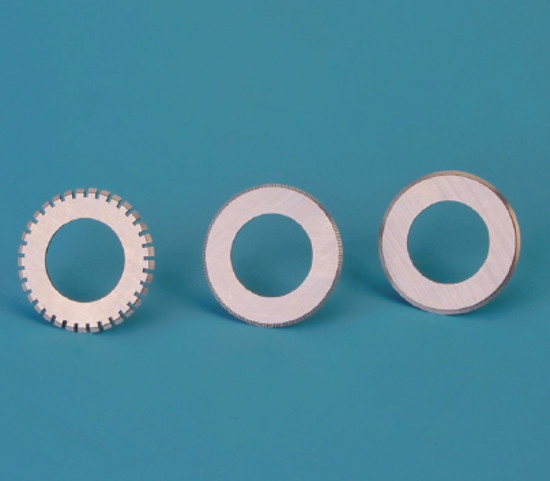

ROTARY TOOLS:- Micro perforation blade- Perforation blade for thick paper - Scoring blade - Kiss cut blade

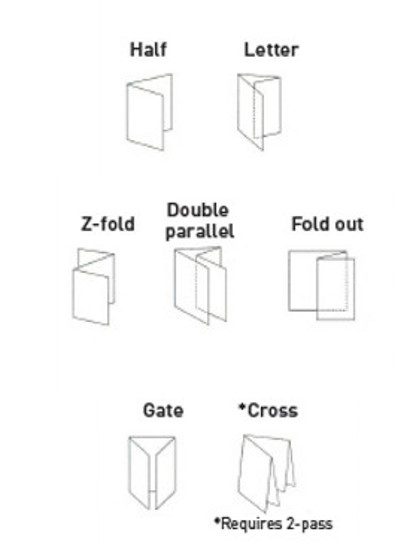

Paper Folds
MBM 508A Automatic Programmable Tabletop Folder

MBM 508A Automatic Programmable Tabletop Folder


Price: $6,399.00

Availability: In Stock
Usually ships In : 1-2 Business Days (Please call us to confirm availability)

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: MBM 508A FO0605   Brand Name:MBM   Manufacturer Part Number: FO0605

MBM 508A Automatic Programmable Tabletop Folder

  • Automatic 3 roller friction feed system
  • Pre-programmed with 36 standard folds
  • Stores 24 custom folds in memory
  • Automatic feed table elevation
  • Features paper feed pressure and separator pressure adjustment
  • Color LCD touch screen control panel includes 4 digit addition and subtraction digital counter
  • Test button folds 2 sheets for inspection
  • Automatically recognizes and displays paper size
  • Extended exit tray for neat stacking of folded sheets
  • Automatic conveyor and self-setting exit rollers ensure smooth ejection of folded paper
  • Single sheet feeding automatically maintained for different weights of paper
  • Auxiliary paper guide for cross folding
  • Load and unload paper from same side
  • Display alert and audible signal in case of incorrect operation
  • Skew and micro-adjustment dials
  • Fully enclosed fold tables for quiet operation
  • Quick-release roller system for easy maintenance
  • Optional scoring, micro-perforating, and slitting units

Features

  • Paper feed / separator pressure adjustment
  • Automatic feed table elevation and delivery roller setting
  • Automatic paper size recognition
  • 24 custom jobs can be stored in memory
  • Perforating / scoring / kiss cut units available by option
Brand Name:
MBM
Depth:
39.75"
Width:
21.5"
Height:
19.7"
Weight:
68 Lbs
Acceptable Paper Size:
3.5" x 5" to 11" x 17"
Acceptable Paper Weight:
12-80
Accepts Glossy Paper:
No
Electrical:
115V 60Hz
Fold Types:
Cross Fold, Double Parallel, Fold-Out Fold, Gate Fold, Half Fold, Letter Fold/C-Fold, Zig-Zag Fold
Friction or Air Feed:
Friction Feed
Maximum Speed:
Operates at a speed of up to 14,400 sheets an hour
Sheet Capacity:
500 Sheets
