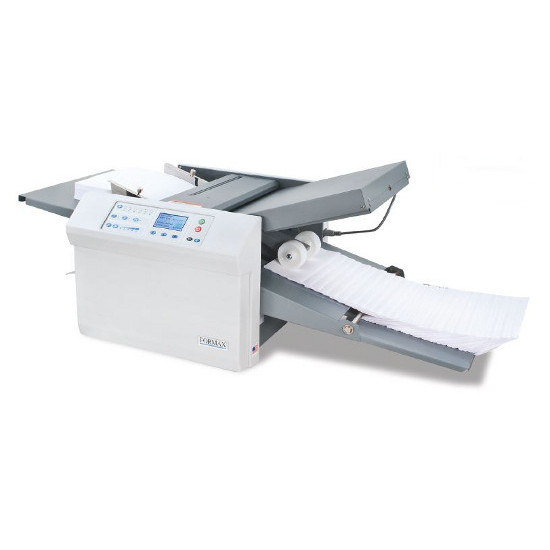

Formax FD 382 Automatic Friction Feed Document Folder
Formax FD 382 Automatic Friction Feed Document Folder
Formax FD 382 Automatic Friction Feed Document Folder

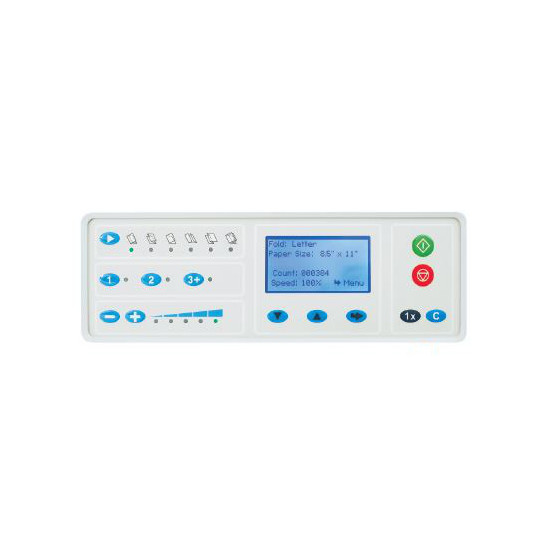

User friendly Control Panel

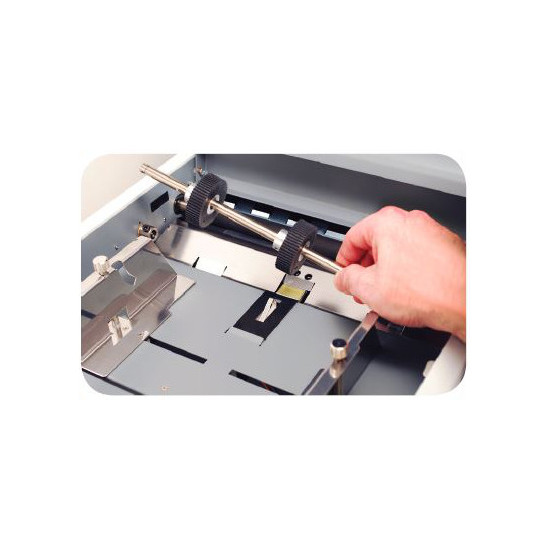

Removable Feed Wheels

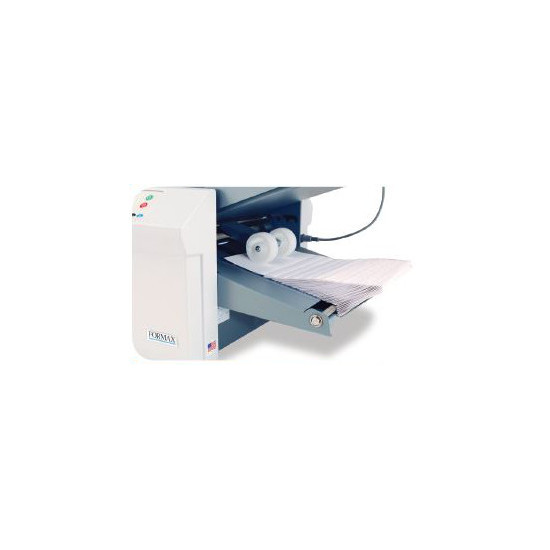

Closed Conveyor

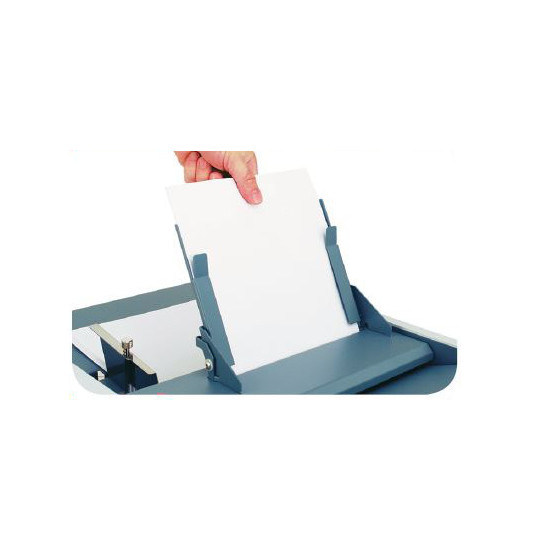

Optional Mult-Sheet Feeder

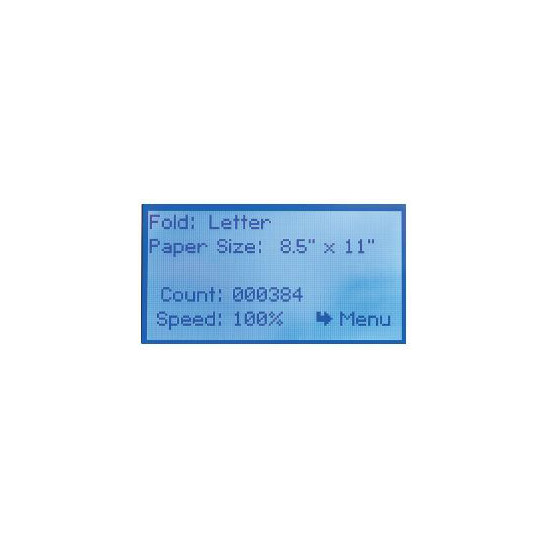

Large LCD Interface
Formax FD 382 Automatic Friction Feed Document Folder - FOR FD382
FD 382 Automatic Friction Feed Document Folder Product Video

Formax FD 382 Automatic Friction Feed Document Folder


Price: Call Toll-Free (800) 203-0233 for Pricing

Availability: In Stock - Call for Price

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: FOR FD382   Brand Name:Formax   Manufacturer Part Number: FD382

The Formax FD 382 Automatic Friction Feed Document Folder offers any business, church, school or print for pay center quick, easy set-up, and the versatility to complete a variety of fold jobs in minutes. Jobs are completed exceptionally fast with the FD 382, folding up to 20,100 pieces per hour! Fully automated fold plates provide one touch setup of the 18 pre-programmed fold settings or for choosing one of the 25 custom folds that can be stored into memory. In addition, the new 2.8” (71mm) backlit LCD display and control panel makes the FD 382 extremely easy to use with a step by step user interface that is second to none.

Operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks. The FD 382 will fold the 500 sheets in as fast as 2 minutes and hold the folded pieces on its patented Telescoping Conveyor System.

The Multi-Sheet Feeder is an optional feature that allows up to 4 sheets stapled or unstapled to be folded at one time through the dedicated feed system with its own side guides and skew adjustment system.

The large 2.8” (71mm) backlit LCD display and user friendly control panel allows for untrained operators to walk up and start folding with little to no instruction. The FD 382 advanced software allows for all standard fold types and paper sizes to be customized to meet your particular needs.

When it comes to paper folding, no one does it faster or with higher quality than the Formax FD 382!

Operating Features

  • Fast! Up To 20,100/Hour: Large jobs are processed quickly at speeds of up to 20,100 pieces per hour
  • Large LCD Interface: A large 2.8” (71mm) backlit LCD screen and user friendly controls allow anyone to walk up and start folding in seconds
  • Drop-In Feed System: Three-roller drop-in feed system produces dependable feeding of forms with no fanning required
  • Adjustable Stacker Wheels: Stacker wheels can be manually adjusted to neatly and sequentially stack different paper sizes and fold types
  • Telescoping Conveyor System: Conveyor can be set between 14” (356mm) and 36” (915mm) in length and holds up to 500 folded pieces
  • Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise
  • 6-Digit Resettable & 8-Digit Life Counters: Provides maximum audit control
  • AutoBatch™: Programmable to process pre-set number of sheets into sets with a delay
  • Folding Features

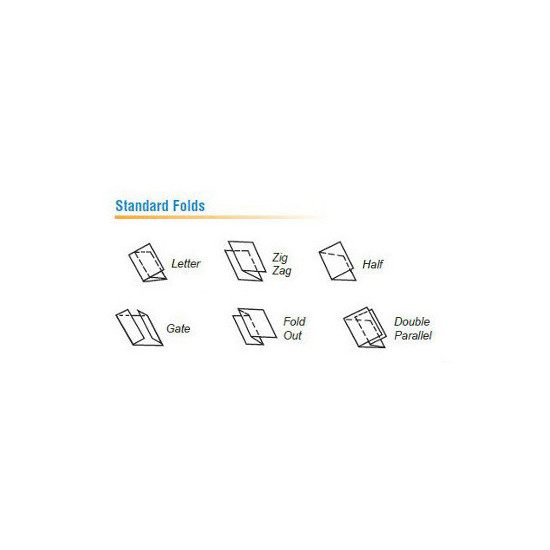

  • Six Standard Folds in Common Paper Sizes: Pre-programmed for 6 popular fold types in letter, legal and ledger paper sizes equalling 18 preset fold settings
  • Stores 25 Custom Folds: Up to 25 custom folds can be programmed and stored into memory
  • Optional Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at once, with the ability to select standard or custom folds in letter and legal paper sizes
  • Standard Fold Settings Modification: Even the six standard fold types can be modified individually for each paper size for maximum flexibility and customization
  • Cross-Folding: A guide is included for two pass operation
  • Technical Features

  • Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers
  • Thick Stock Mode: Speed can be temporarily increased to help feed thicker stocks
  • Seven Point Fold Stops: Fold plates utilize seven point fold stops for crisp, accurate folds of large paper sizes at high speeds
  • Removable Roller Cover: Easily removed for improved access to fold rollers and exit area
  • Six Languages: Language selections include English, Spanish, French, German, Italian & Dutch
  • Brand Name:
    Formax
    Depth:
    33"
    Width:
    20"
    Height:
    19"
    Weight:
    73 Lbs
    Acceptable Paper Size:
    3 1/2" W x 5" L to 12 1/4" W x 18" L
    Accepts Glossy Paper:
    No
    Electrical:
    120-240 Volts AC 50/60 Hz
    Fold Types:
    Double Parallel, Fold-Out Fold, Gate Fold, Half Fold, Letter Fold/C-Fold, Zig-Zag Fold
    Friction or Air Feed:
    Friction Feed
    Language:
    Dutch, English, French, German, Italian, Spanish
    Maximum Speed:
    Up to 20,100 sheets per hour
    Sheet Capacity:
    500
