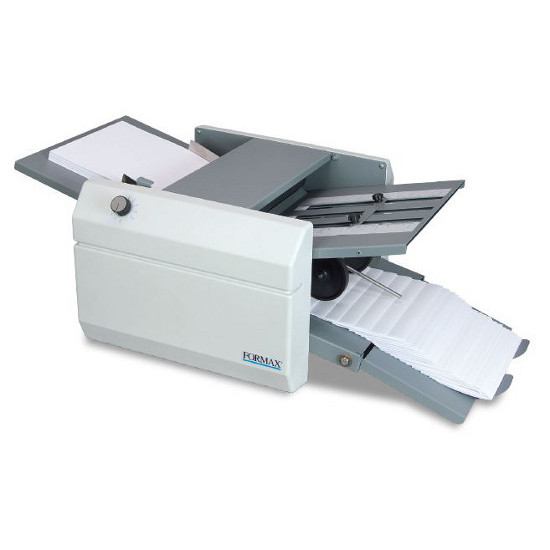

Formax FD 322 Semi Automatic Friction Feed Document Folder
Formax FD 322 Semi Automatic Friction Feed Document Folder
Formax FD 322 Semi Automatic Friction Feed Document Folder

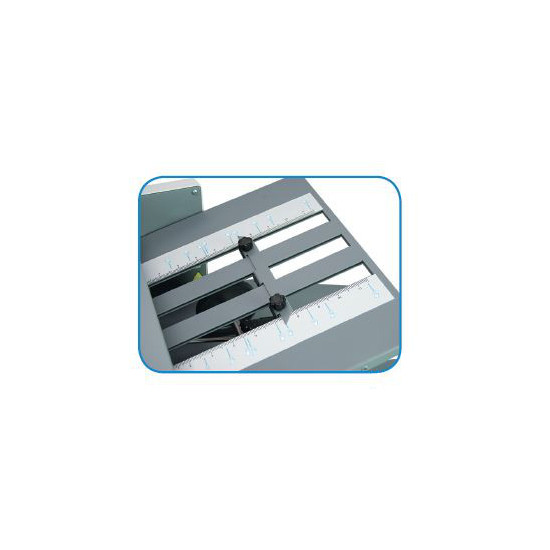

Fold plates are clearly marked for popular folds and are easy to adjust

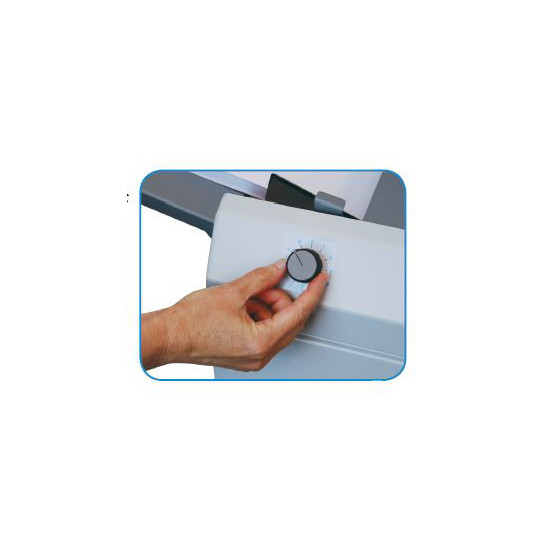

Variable speed control knob

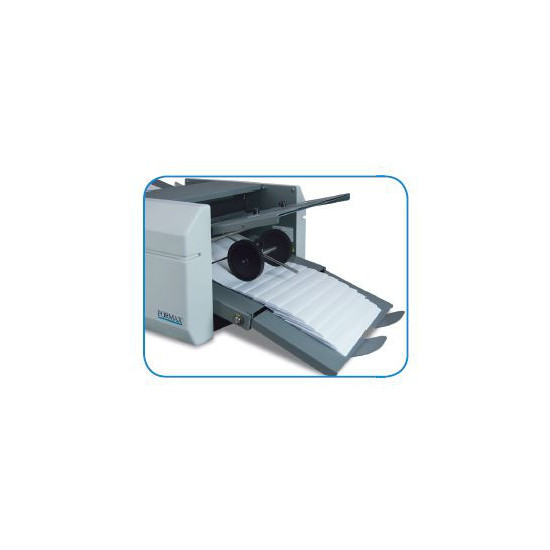

Outfeed conveyor holds folded documents in a sequential order

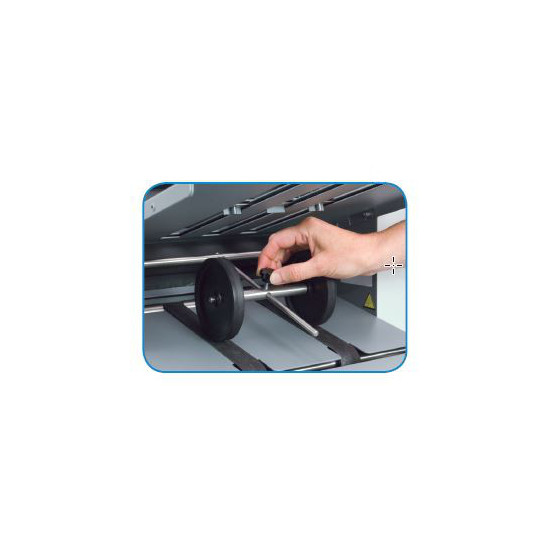

Adjustable stacker wheels help to keep folded documents in a neat stack

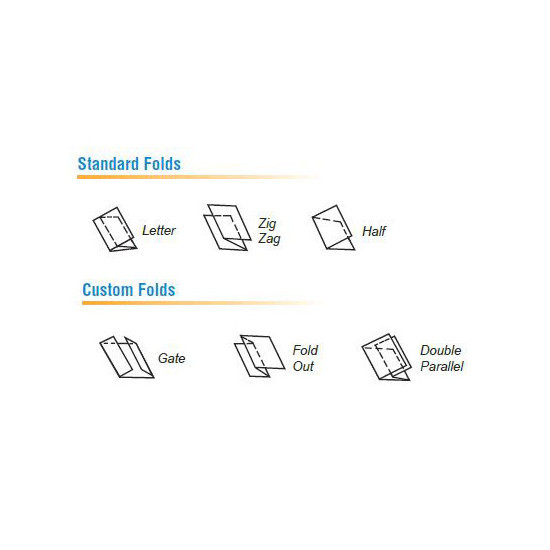

Standard & Custom Fold Types
Formax FD 322 Semi Automatic Friction Feed Document Folder Product Video

Formax FD 322 Semi Automatic Friction Feed Document Folder


Price: Call Toll-Free (800) 203-0233 for Pricing

Availability: In Stock - Call for Price

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: FOR FD322   Brand Name:Formax   Manufacturer Part Number: FD322

The Formax FD 322 Semi Automatic Friction Feed Document Folder offers an unmatched level of performance and affordability. Designed with ease of operation in mind, it utilizes a drop-in feed system, eliminating the need to fan paper. Simply square the paper stack and load it into the feed tray. The FD 322 can handle 11”, 14” and 17” paper sizes, and is pre-marked for three standard folds: Letter, Zig-Zag, Half. The fold plates are easily adjusted for three custom folds: Gate, Fold Out, Double Parallel.

Removable top and bottom fold plates make this folder ideal for churches, schools, businesses or departments that demand quick and easy set-up and operation. Variable speed control allows for processing up to 11,000 sheets per hour. An extended outfeed conveyor allows operators to run most applications without having to unload the output before the infeed is empty.

As with all Formax folders, the FD 322 is constructed with a heavy-duty steel frame and molded, high-impact side covers for durability. The three-tire friction feed accurately pulls paper info the folder, while the skew adjustment allows for moving the feed table left or right, to produce crisp, accurate folds.

The compact size and user-friendly operation make the FD 322 an ideal solution for churches, schools, and offices that demand quick and easy setup and operation.

Operating Features

  • Variable Speed: Jobs are processed quickly at speeds of up to 11,000 pieces per hour
  • Extended Outfeed Conveyor: Allows for neat, sequential stacking of folded documents
  • Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required
  • Simple Operation: Easily change processing speed with the simple speed adjustment knob
  • Paper Sizes: Handles paper sizes up to 11 3/4” x 18”
  • Folding Features

  • Pre-Marked for Three Popular Folds: Letter, Zig-Zag and Half fold in 11”, 14” and 17” paper lengths
  • Custom Folds: Fold plates can be easily adjusted for custom folds including Gate, Fold Out and Double Parallel
  • Three-Tire Friction Feed System: Accurately pulls paper into the fold rollers
  • Skew Adjustment: Adjusts feed table left or right for crisp, accurate folds
  • Technical Features

  • Rugged Construction: Heavy-duty steel frame and molded, high-impact side covers for durability
  • Quick, Easy Setup: Clearly marked fold settings and removable top and bottom fold plates
  • Brand Name:
    Formax
    Depth:
    38"
    Width:
    18"
    Height:
    11"
    Weight:
    27 Lbs
    Acceptable Paper Size:
    3 1/8" x 4" to 11 3/4" X 18"
    Accepts Glossy Paper:
    No
    Electrical:
    110 Volts AC 50/60 Hz
    Fold Types:
    Double Parallel, Fold-Out Fold, Gate Fold, Half Fold, Letter Fold/C-Fold, Zig-Zag Fold
    Friction or Air Feed:
    Friction Feed
    Maximum Speed:
    Up to 11,000 sheets per hour
    Sheet Capacity:
    250
