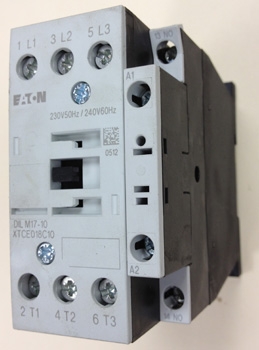

Eaton DIL M 17-10 Contactor (Motor Control) 230 Volt, 50Hz / 240 Volt, 60 Hz XTCE018C10 with Normally Open Auxiliary Contacts
Eaton DIL M 17-10 Contactor (Motor Control) 230 Volt, 50Hz / 240 Volt, 60 Hz XTCE018C10 with Normally Open Auxiliary Contacts - Eaton DILM17-10
Eaton DIL M 17-10 Contactor (Motor Control) 230 Volt, 50Hz / 240 Volt, 60 Hz XTCE018C10 with Normally Open Auxiliary Contacts - Eaton DILM17-10
Eaton DIL M 17-10 Contactor (Motor Control) 230 Volt, 50Hz / 240 Volt, 60 Hz XTCE018C10 with Normally Open Auxiliary Contacts - Eaton DILM17-10

Eaton DIL M 17-10 Contactor (Motor Control) 230 Volt, 50Hz / 240 Volt, 60 Hz XTCE018C10 with Normally Open Auxiliary Contacts


Price: $56.00

Availability: In Stock
Usually ships In : 1-2 Business Days (Please call us to confirm availability)

All spare and replacement parts orders are final! No returns accepted! If you are unsure which part to order, call us at 281-453-8801

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: Eaton DILM17-10   Brand Name:Eaton   Manufacturer Part Number:

Eaton DIL M 17-10 Contactor (Motor Control) 230 Volt,50Hz / 240 Volt,60 Hz XTCE018C10.

Full Voltage Non-Reversing 3-Pole Contactor

Features:

  • Reversing or non-reversing contactors
  • AC-3 contactor ratings to 1600A
  • Panel or DIN-Rail mounting to 65A
  • IP20 finger and back-of hand proof
  • Built-in NO auxiliary contacts to 32A
  • Built-in surge suppresion on DC coils XTCE Frame C

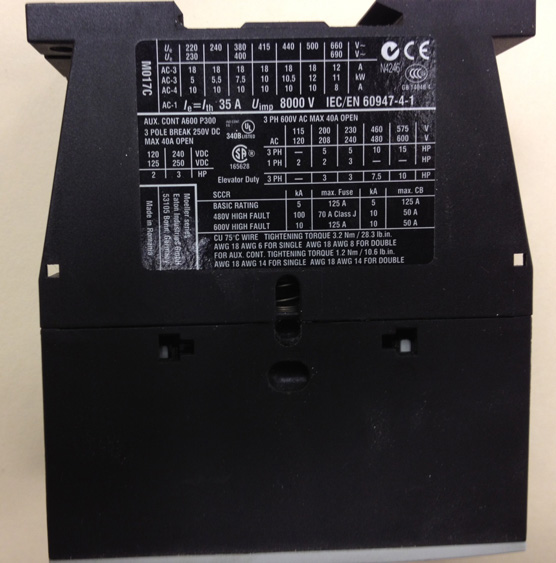

CU 75°C wire tightening torque 3.2 Nm/28.3 lb.in.
AWG 18 AWG 6 for single AWG 18 AWG 8 for double
For Auxiliary Contactors tightening torque 1.2 Nm/10.6 lb.in.
AWG 18 AWG 14 for single AWG 18 AWG 14 for double

Frame Type: Frame B
UL/CSA Ratings
(UL General Purpose Amp Rating):
40
3 Phase, 230 Volt, Horsepower Rating: 5 HP
AC-3
I e (A):
18
AC-1
(40°C)
I e = I th (A):
35
Maximum kW Ratings AC-3
3-Phase Motors 50-60Hz
220/230Volt:
5
Auxiliary Contacts: 1NO (normally open)
Catalog Number-Screw Terminals: XTCE018C10
Country of Origin: Made in Romania
