Bramidan X10 Entry Level Cardboard, Cans, Hard Plastics Vertical Baler Single or 3 Phase
Bramidan X10 Entry Level Cardboard, Cans, Hard Plastics Vertical Baler Single or 3 Phase
Bramidan X10 Entry Level Cardboard, Cans, Hard Plastics Vertical Baler Single or 3 Phase
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10
Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP - X10

Product video:




Bramidan X10 Entry Level LOW PROFILE Cardboard, Cans, Hard Plastics Vertical Baler 110V, 60 Hz, 20 AMP

Multi Material Manufacturing • Print On Demand Shops • FedEx/Postal Service • Small Specialty Grocery Stores • Fabric Shops • Restaurants • Hotels • Shipping/Logistcs


Price: Call Toll-Free (800) 203-0233 for Pricing



Availability: In Stock - Call for Price

Part Number: X10   Brand Name: Bramidan   Manufacturer Part Number: X10

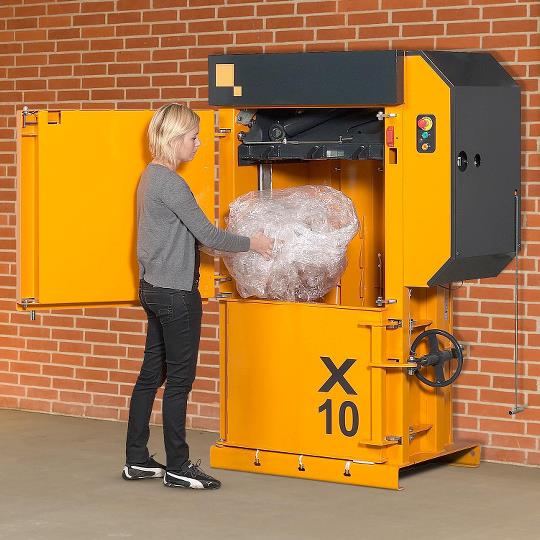

The X10 HD is low-profile baler that is perfect for locations with a limited amount of space.

Suggested Uses:

  • Multi material manufacturing
  • Print on demand shops
  • FedEx or Postal Service and Copiers
  • Small specialty grocery stores
  • Fabric shops
  • Restaurants
  • Hotels
  • Shipping Logistics

    • Powerful press force
    The X10 HD is a small and compact machine with a powerful press force that's unique for its size.

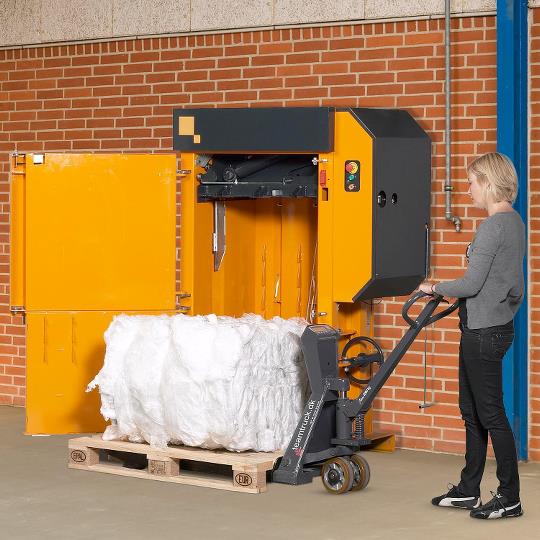

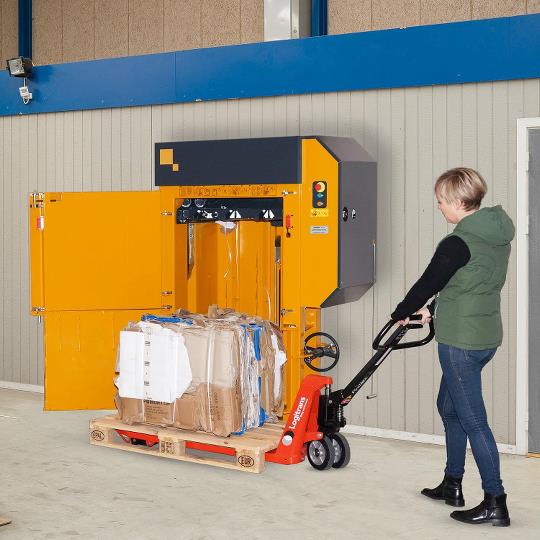

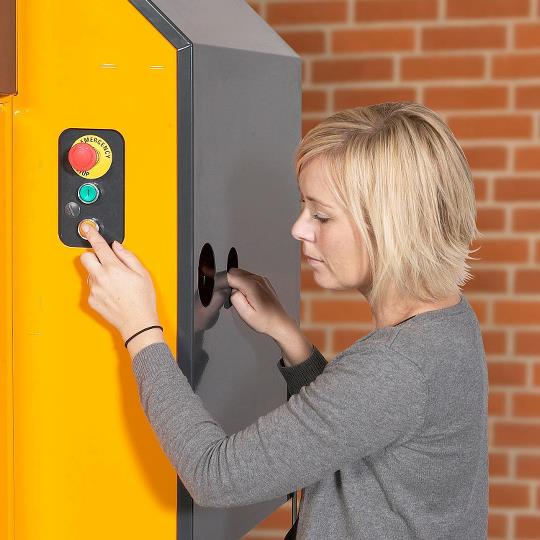

    Safe ejection process

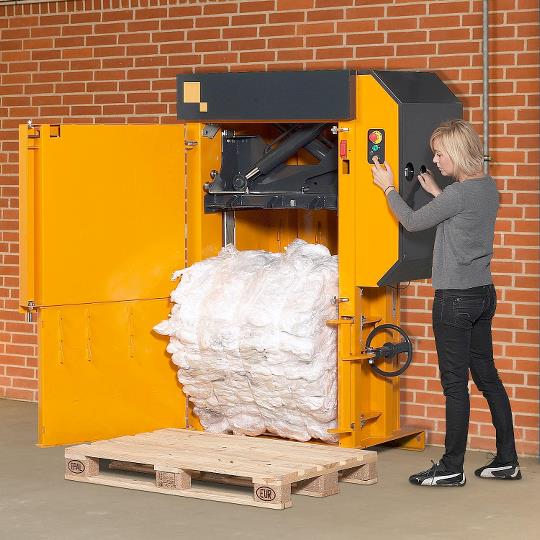

    The ergonomic two-hand ejection sequence safely ejects the finished bale and eliminates risk for injury.

    X10 HD - Hardworking baler with high capacity:

  • Efficient and compact

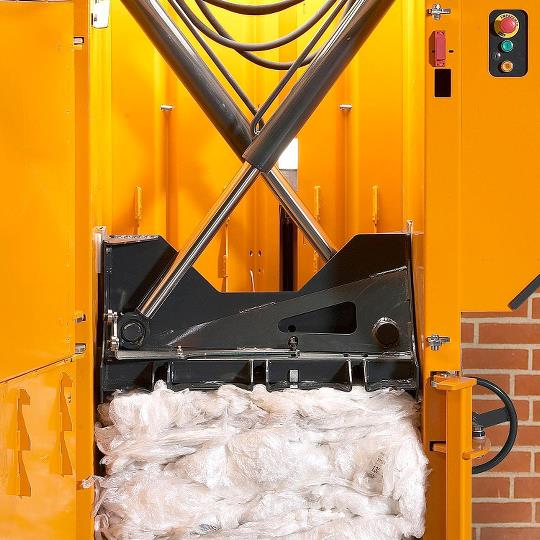

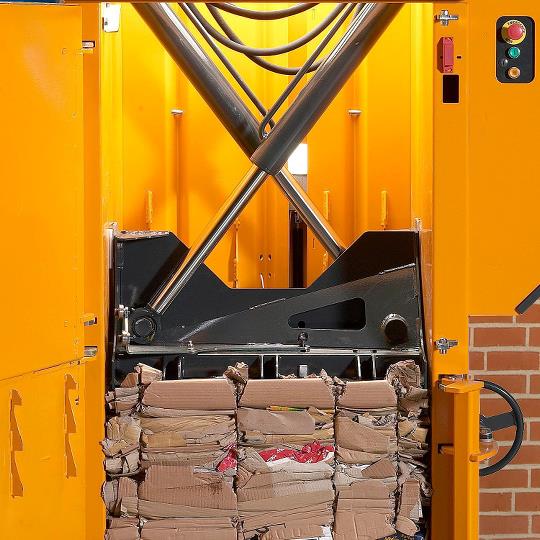

  • Low overall height (75 in.) with internal cross cylinders
  • Fast cycle time
  • Press force of 22,000 lbs.

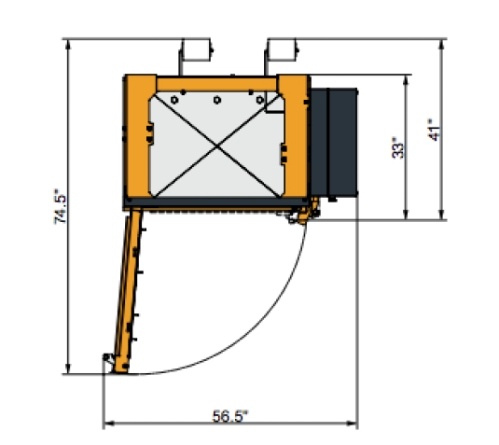

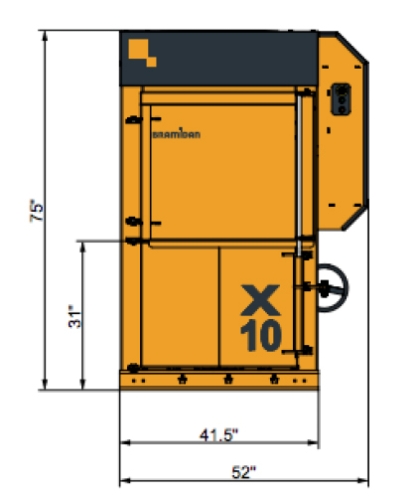

  • Small footprint (52 x 41 x 75 in.)
  • Durable compaction
  • Available in both single-phase and three-phase power packs

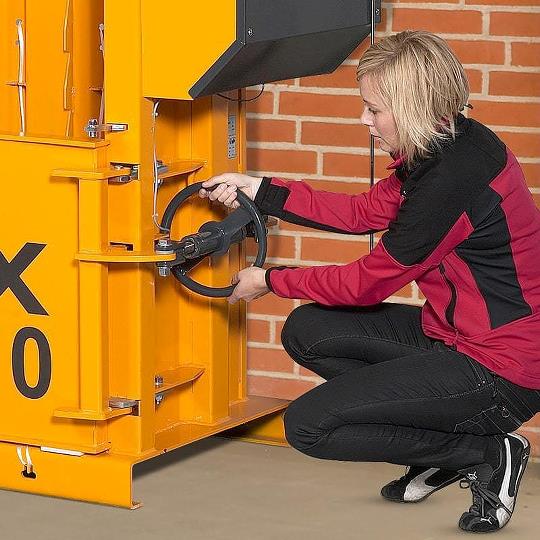

  • Safely open lower door with turnbuckle

    • Bale Size:
    24" depth x 30" width x 24" height
    Feed Opening:
    31" width x 24" height
    Depth:
    41"
    Width:
    52"
    Height:
    75"
    Weight:
    1470 pounds
    Acceptable Material:
    Aluminum Cans, Cardboard, EPS, Hard Plastic, Paper, PET Bottles, Plastic Foil, Textile, Tin cans
    Bale Eject:
    Automatic
    Bale Weight (Cardboard):
    150-200 pounds
    Bale Weight (Plastic Foil):
    175-245 pounds
    Full Bale Light:
    Yes
    Number of Ties:
    3 Ties
    Press Force:
    22,000 pounds
    Stroke:
    33"
    Type of tying:
    Twine
    Cycle Time:
    40 seconds
    Electrical:
    110 Volt, 60 Hz, 20 Amp
    Motor:
    5.5 horsepower
    Noise Level (dB):
    62-64 dB
