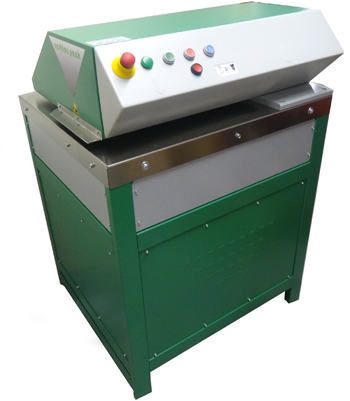

AABES © Cushion Pack CP428 Series2+ High Capacity Cardboard Shredder
AABES © Cushion Pack CP428 Series2+ High Capacity Cardboard Shredder - CUSHION CP428 S2
AABES © Cushion Pack CP428 Series2+ High Capacity Cardboard Shredder - CUSHION CP428 S2
Cushion Pack CP428 S2+ cardboard shredder video
AABES © Cushion Pack CP428 Series2+ High Capacity Cardboard Shredder - CUSHION CP428 S2


Product video:

AABES © Cushion Pack CP428 Series2+ High Capacity Cardboard Shredder


Price: Call Toll-Free (800) 203-0233 for Pricing

Availability: Special Order - 8 to 10 Week Lead Time

Cushion Pack © Green Champions Join our growing list of satisfied Cushion Pack © cardboard shredder customers today!

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: CUSHION CP428 S2   Brand Name: Cushion Pack   Manufacturer Part Number: CP428 S2 240 VOLT

This item is Special Order: 8-10 Week Lead-time.

Click to Request a Free Sample of Shredded Cardboard!

Cushion Pack© CP 428 S2+ Cardboard Shredder Electrical Information for 240 Volt and 480 Volt Configurations

The AABES© Cushion Pack© CP428 Series 2 + cardboard shredder is a rugged machine that is larger and shreds cardboard faster than the CP422. It is very similiar to the CP430 machine with the following exceptions:

  • The CP428 has a smaller motor horsepower (3.0 kW vs. 4.0 kW)
  • The CP428 throughput rate is slightly less than the CP430 (46 feet per minute vs. 52 feet per minute).
  • The CP428 is lighter than the CP430 (610 pounds vs. 705 pounds) Shredding is a one step procedure. No matter what width, you can place a wide sheet of corrugate into the Cushion Pack and it will shred up to 16.9" in width on the CP428.

View Cushion Pack© CP428 Series 2 + Heavy Duty Corrugated Shredder Video This Cushion Pack© video lasts about 3 minutes and 11 seconds. File Size is approximately: 57.8 MB

Note that all Cushion Pack© CP428 Series 2 + shredders are equipped with a dust extraction kit which requires only a dust collector or a vacuum to be connected to the shredder housing.

Call 1.800.203.0233 for a sample of cardboard processed through the CP430.

Warranty:
Please visit our Cushion Pack© Manufacturer Warranty page for complete Cushion Pack© warranty information.

Loading width - cardboard size: Endless
Cutting width of cardboard: 16.9''
Cardboard thickness: Up to 0.78" thickness
Production output: 6 - 10 cubic yards per hour
Throughput rate: 46 feet per minute
Motor Capacity: 3.0 kW motor
Power supply: OPTION 1:
208V, 60 Hz, 3 Phase, 20 amp circuit breaker per phase tied together
OPTION 2:
240V , 60 Hz, 3 Phase, 20 amp circuit breaker per phase tied together
OPTION 3:
480 voltage with 24VAC low voltage control system , 15 amp circuit breaker per phase tied together
Machine Dimensions: 31'' depth x 30'' width x 43'' height
Machine Weight: 660 pounds
Push Button Control Start/Stop and Reverse Functions: Yes
Push Button Reset Feature: Yes
Create Two Types of Material: Adjustable to make flat sheets or pre-cushioned material - A Cushion Pack Exclusive!
Brand Name:
Cushion Pack
Depth:
31
Width:
30
Height:
43
Weight:
660 Lbs
Cardboard Thickness:
Up to 0.78"
Creates 2 Types of Packing Material:
Yes
Cutting Width of Cardboard:
16.9"
Electrical:
208V,240V, or 480V, 3 Phase, 60 Hz
Horsepower:
3.0 kW / 4.02 HP"
Loading Length-Cardboard Size:
Endless
Speed:
46 feet per minute
Throughput rate:
6-10 cubic yards per hour
Cushion Pack © Green Champions-Join our growing list of satisfied Cushion Pack © cardboard shredder customers today!
Our Cushion Pack carbon footprint worksheet can help determine how much greener your organization could be with a Cushion Pack© corrugated shredder.


  View or Download the Cushion Pack CP428 S2+ Cardboard Shredder Brochure

HELPFUL REVIEWS


Product Reviews
Overall Customer Rating:
Customer Reviews: 1

CP428
Rating:
Author: CP428
Location: Seville, OH
Comments:
As a parts distribution center, we need a top notch 3 phase shredder and the CP428 fit the bill.

ProSource delivered on time and shipped it in a custom made plywood crate. We like the attention to detail.
Pros:
  • 3%20Phase%20240%20Volt
  • Shipped%20in%20plywood%20crate
  • Met%20our%20needs
  • Makes%20flat%20and%20precushioned%20material
Cons:
  • Special%20order
