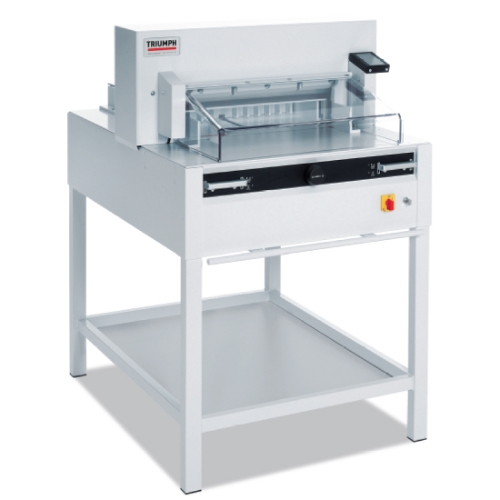

Triumph 5255 Automatic-Programmable 20-3/8'' Paper Cutter
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER
Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter - TRI 5255 CUTTER


Product video:




Triumph 5255 Automatic-Programmable 20-3/8" Paper Cutter


Price: $14,359.00

Availability: In Stock
Usually ships In : 1-2 Business Days (Please call us to confirm availability)

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: TRI 5255 CUTTER   Brand Name:Triumph   Manufacturer Part Number: CU0490

The Triumph 5255 Offers High Speed Production and Top Safety for Storefront and Franchise Shops. Your company can save time by programming up to 99 jobs each with 99 programmable steps! No more having to write down each cutting length for every cut. Your operator will be happy and your customers will be very satisfied with the professional finish.

Remember: the table is not equipped with casters and this Triumph paper cutter requires a 20 amp dedicated circuit. For easy adjustments, the back gauge is controlled with the hand-wheel in the center of the control panel. When you turn the hand-wheel control to the right, it moves the paper forward. The further the hand-wheel is turned to the right, the faster the back gauge moves. Return of the back gauge is only possible in a quick motion by turning the hand-wheel to the left.

Additional Features
  • Power back gauge and programmable keys save time and maximize efficiency for small quantities and frequent changes
  • Digital display with indication accuracy of 0.01" and electronic hand wheel allow for fine adjustment of back gauge
  • 10-button keypad to preset measurements easily
  • Memory key for repeat cuts and eject key
  • Knife and clamp push-button activated
  • Clamp can be operated independently from blade
  • Safety guards on front and rear tables
  • Motor protection switch is standard
  • Optical cutting line for easy sight trimming
  • Safety Features
  • External Blade Depth Adjustment
  • Two-hand operation
  • Transparent safety guards on front and rear tables
  • Disc brake for instant blade stop
  • Automatic blade return from any position
  • Safety lock with key and main switch
  • Brand:
    Triumph
    Depth:
    38.25"
    Width:
    29.75"
    Height:
    48.5"
    Weight:
    556 Lbs
    Acceptable Cutting Material:
    Paper
    Clamping Style:
    Automatic clamp
    Cutting Capacity:
    3"
    Cutting Length:
    20 3/8"
    Cutting Length Behind Blade:
    17 11/16"
    Cutting Operation:
    Electric
    Electrical:
    115V, 60 Hz, 20 Amp Dedicated Electrical Supply
    Minimum Cut Length:
    1 3/8"
    Motor:
    2 horsepower
    Number of Programs:
    99 programs with 99 steps in each program
    Table Length in Front of Blade:
    13 5/8"
