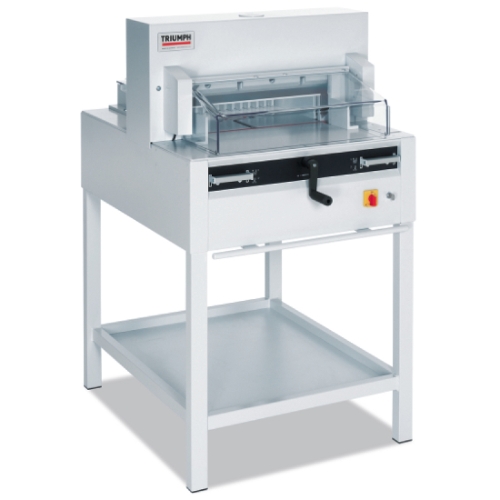

Triumph 4850 Automatic 18-5/8" Paper Cutter


Price: $11,759.00

Availability: In Stock
Usually ships In : 1-2 Business Days (Please call us to confirm availability)

We Will Meet or Beat Any Price - Click Here to Submit Your Pricing Information

Part Number: TRI 4850 CUTTER   Brand Name:Triumph   Manufacturer Part Number: CU0416L

Triumph 4850 Features:

  • SCS (Safety Cutting System) package: transparent, electronically controlled front safety guard
  • Transparent safety cover on rear table
  • Main switch and safety lock with key
  • Electronically controlled, true two-hand operation, 24 volt controls (low voltage)
  • Patented IDEAL safety drive; automatic blade return from every position
  • Automatic clamp return from every position
  • Disc brake for instant blade stop
  • Blade and cutting stick can be changed without removing covers
  • Blade changing device covers cutting edge of blade
  • Blade depth adjustment from outside of machine
  • Electric blade and clamp drive
  • Solingen steel blade
  • Solid steel blade carrier and adjustable blade guides
  • Automatic clamp is guided on both sides to apply even pressure along entire cutting width (can be lowered or raised independently from blade)
  • Dual side guides on front and rear tables
  • Spindle-guided back gauge with calibrated crank, narrow separations, and plastic Gliders
  • Digital display for precise back gauge positioning
  • Bright, LED optical cutting line
  • All-metal construction
  • Stand with storage shelf

Installation Instructions:

  • The machine must be installed on a sturdy,dry and level floor. Danger!
  • The machine must not be located outside.
  • Do not use in the vicinity of inflammable liquids or gases.
  • Do not use in humid environments.
  • Protect mains cable against heat, oil and sharp edges.
  • 6 strong people are required to lift the machine from the pallet.
  • Place the machine on the enclosed stand and secure with the 4 screws.
  • Place the shelf in the stand.
Brand:
Triumph
Depth:
41.5"
Width:
30"
Height:
51"
Weight:
556 Lbs
Acceptable Cutting Material:
Paper
Clamping Style:
Automatic Paper Clamp
Cutting Capacity:
3"
Cutting Length:
18 5/8"
Cutting Length Behind Blade:
17 11/16"
Cutting Operation:
Electric
Electrical:
115V, 60Hz, 20 Amp Dedicated Electrical Supply required
Minimum Cut Length:
1 1/4"
Motor:
2 horsepower
Table Length in Front of Blade:
13 5/8"
